Ceilings play a crucial role in interior decoration, not only enhancing spatial depth but also creating unique atmospheres through design. However, ceiling cracks have become a persistent concern for many homeowners, ranging from subtle hairline fractures to significant structural splits. These issues not only compromise aesthetics but may also pose hidden safety hazards. This article systematically analyzes the root causes of ceiling cracks across three dimensions—material selection, construction techniques, and environmental control—and provides actionable prevention strategies.
Ⅰ. Material Quality: The quality of the ceiling material determines its crack resistance.
1. Material traps for skeletal systems
The water absorption of the wooden profile is the primary cause of cracking. Experimental data show that a wooden profile with excessive moisture content (Chinese standard requires ≤12%) can shrink up to 3.2% during drying, causing the profile framework to deform and leading to cracks in gypsum board joints. In a high-end finished housing project, 0.5 mm-thick light steel profiles (Chinese standards require ≥ 0.6 mm) exhibited an 80% cracking rate within six months post-completion. Testing revealed profile deflection exceeding standards by threefold.

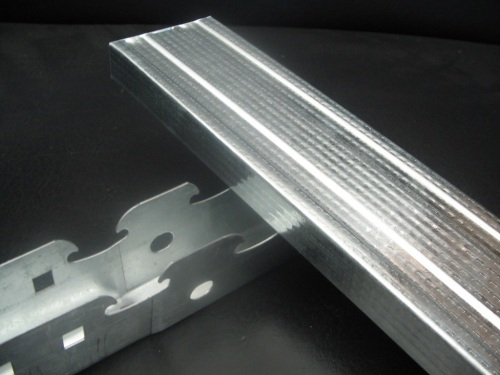

Solution: Prioritize using galvanized light steel profiles (50 series) with a measured thickness of at least 0.6 mm. If wood profiles must be used, apply an ACQ preservative and incorporate expansion joints to ensure the moisture expansion rate remains below 0.8%.
2. Performance code of covering material
The quality of a gypsum board directly impacts its crack resistance. Substandard boards pose two major risks: low flexural strength due to insufficient fiber content (Chinese standard ≥7.5MPa) and inadequate peel strength between the facing paper and core material. Laboratory comparative tests show that compliant gypsum boards remain intact during a temperature cycle test at 50°C, while substandard products exhibit a 67% joint cracking rate.
Material Selection Recommendations:
· Thickness selection: A 12 mm waterproof gypsum board should be used in wet areas, such as bathrooms. A 9 mm board can be used in ordinary areas, but it needs to be combined with double-layer staggered seam technology.
· Type matching: Select specialised boards based on the use scenario, such as fire-resistant boards with a fire endurance limit of at least 30 minutes or high-strength boards with a break load of at least 400 N.
3. Technical parameters of the joint sealing system.
To be considered high-quality, joint compound must meet three criteria: tensile bond strength of at least 0.3 MPa in both dry and wet states, flexural strength of at least 2.5 MPa, and the ability to undergo flexible deformation (lateral deformation of at least 1.5 mm). In a certain project, using ordinary putty instead of specialised joint compound resulted in cracked joints within three months.
Key process points: Use a composite system of ‘elastic joint compound + fibreglass mesh tape’. When jointing, leave a 5–8 mm gap. Apply the joint compound in two separate applications and affix the crack-resistant mesh.
Ⅱ. Construction Process: Millimetre-perfect Precision Determines Structural Stability.
1. Mechanical balance of the profile frame.
Excessive spacing between hanging hooks is a common hidden danger. The Chinese standard requires the spacing between hanging hooks to be ≤1200 mm, but some projects increase the spacing to 1500 mm to save materials. This can result in sagging and deformation of the profile. A case study of a five-star hotel revealed that the probability of cracking in the unreinforced manhole area is 4.7 times higher than in the standard construction area.
The critical control points are as follows：
· The spacing of the main channels is ≤1000 mm, and the spacing of the ceiling carriers is ≤400 mm.
· The distance between the hanging hook and the end of the main channel should be no more than 300 mm. If this limit is exceeded, additional hanging hooks must be installed.
· During installation, ensure that the M8 fully threaded hanging hooks are secured with expansion sleeves to align them with the direction of gravity.
2. Stress Management for Gypsum Board Fixing
An incorrect fixing sequence can lead to the accumulation of internal stress. Fixing gypsum boards at all four corners simultaneously creates 0.8 MPa of shear stress, which far exceeds the panel’s shear strength. Finite element analysis shows that using the correct ‘centre-to-edge’ fixing sequence can reduce stress by 60%.
Operating procedures:
· Self-tapping screws should be spaced no more than 200 mm apart and countersunk 0.5–1 mm below the panel surface.
· When laying boards vertically, ensure that the joints in the boards are perpendicular to the ceiling carriers to avoid horizontal joints falling on the same profile.
· The corner uses an ‘L’-shaped full-panel transition to prevent stress from building up at straight-line joints.
3. Process interconnect protection system
Crosswork damage is a significant cause of subsequent cracking. Subsequent processes, such as opening light fixtures or repairing pipelines without implementing shock mitigation measures, can cause the ceiling to bear a dynamic load. In one case, opening an unprotected light socket resulted in radial cracks appearing within a 30 cm radius.
Protection Measures:
• Before opening the hole, the surrounding profile was reinforced with an elastic hanging system.
• Do not open any holes in the profile position, as this could sever the weight-bearing structure.
• During subsequent construction processes, ensure that the ceiling surface is covered with protective film.
III. Environmental Control: Enabling Materials and Space to “Breathe in Unison”
1. Designing compensation for temperature and humidity cycling.
Inconsistent deformation is caused by differences in thermal expansion coefficients between materials. For example, gypsum board has a linear expansion coefficient of 8×10⁻⁶/℃, whereas light steel profiles have a coefficient of 12×10⁻⁶/℃. Under annual temperature variations of 60°C, this results in a relative displacement of 0.48 mm, which exceeds the compensatory capacity of joint sealants.
Response Plan:
· Install waterproof, breathable membranes in areas where humidity exceeds 70%.
· In areas where the temperature difference exceeds 40°C, leave an 8–10 mm structural joint and fill it with an elastic sealant.
· Utilize BIM construction simulation to optimize profile layout and stress distribution.
2. Hidden risks in substrate preparation
Applying a second coat of putty before the first has fully dried can cause shrinkage and cracking of the surface. During winter construction, turning on the heating immediately upon completion can lead to structural cracking due to a sudden temperature difference of 15-20°C.
Process Standards:
· Construction can only proceed when the moisture content of the substrate is ≤8%.
· Each coat of putty needs to dry for at least 24 hours (at 25°C).
· During winter construction, maintain an indoor temperature of at least 10°C and ensure that the temperature difference does not exceed 5°C.
3. Preventive Structural Reinforcement for Dynamic Loads
Structural factors, such as foundation settlement and floor deformation, cannot be ignored. Monitoring data from a residential community indicates that the rate at which ceilings crack in a building with a settlement of 50 mm in the first year after completion is 3.2 times higher than in a building with a settlement of 20 mm.
Preventive measures:
· Structural safety tests are carried out before construction begins to assess the carrying capacity.
· Flexible connectors are used in areas at risk of sinking, allowing for a bit of displacement of 0.5–1%.
· Set up a full lifecycle maintenance system and inspect the joint areas every quarter.
Conclusion: A five-in-one prevention and control system should be built.
To prevent ceiling cracks, an integrated prevention system must be established that encompasses materials, design, construction, environment, and maintenance. When selecting renovation services, property owners should prioritise evaluating contractors’ technical qualifications and quality control systems in order to avoid the pitfall of choosing based solely on price. Strict adherence to Chinese standards (such as GB 50210-2018, the ‘Quality Acceptance Standard for Building Decoration and Renovation Projects’) and the integration of innovative technologies can ensure that ceiling projects achieve a 30-year crack-free lifespan. Remember: True quality engineering begins with reverence for every detail.
